Grieve 323
• 230V/60Hz/1 Phase (±5%) electric service
• Work space dimensions 36" wide x 21" deep x 36" high
• Approximate overall dimensions
• 40" wide ( 9" control panel on right) x 28" deep x 47" high ( 10" blower motor on top)
• Maximum temperature 400°F (204°C)
• Analog, non-indicating temperature controller
• Adjustable manual reset excess temperature controller

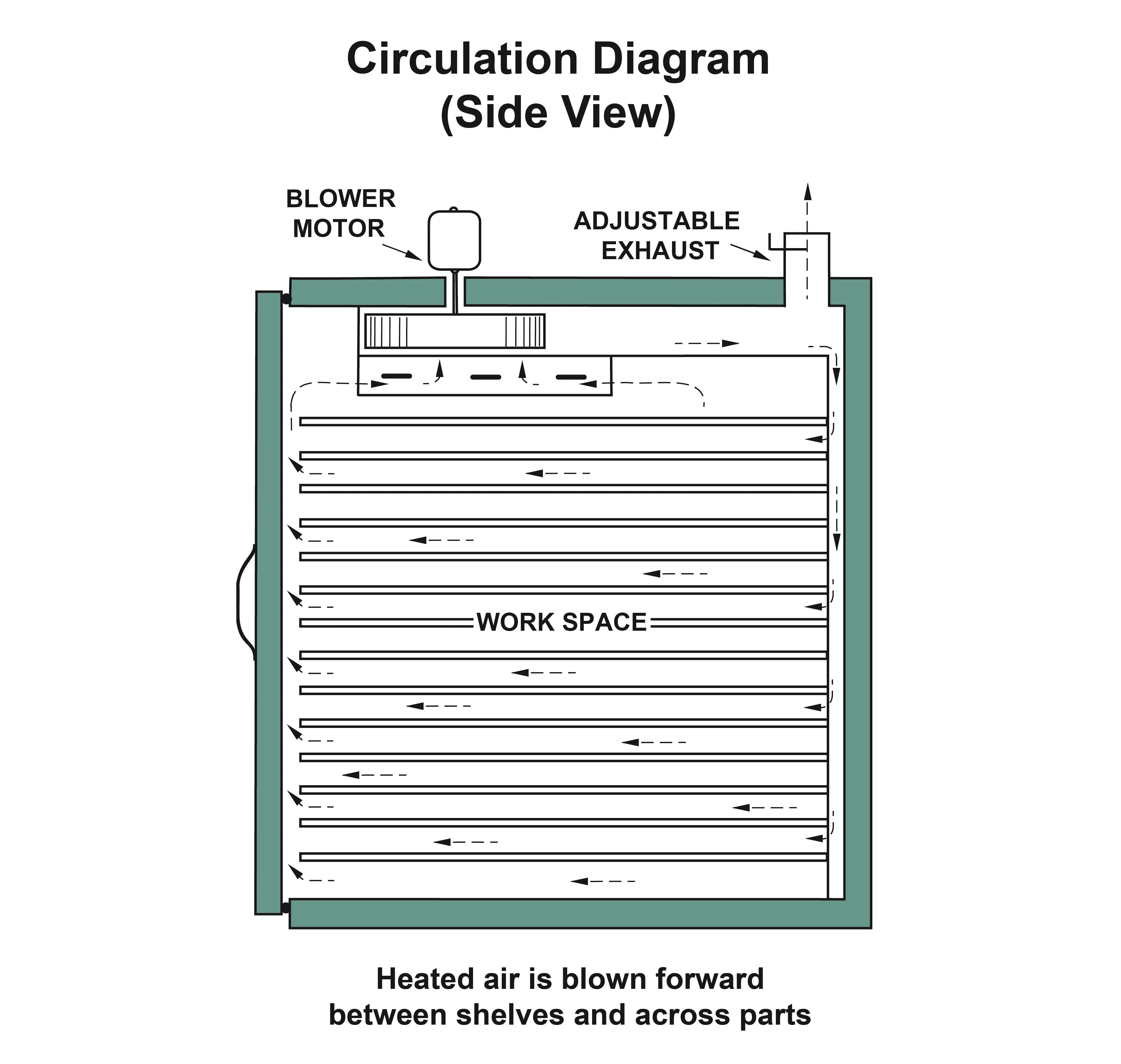

• Recirculating blower 1/3 HP, 400 CFM
• Heat input 4.4 kW
• 2" thick wall insulation
• 304 stainless steel interior
• Aluminized steel exterior with painted enamel finish
•
• 50 lbs. distributed load per shelf
• 200 lbs. maximum oven shelf loading
• 1 year limited warranty
